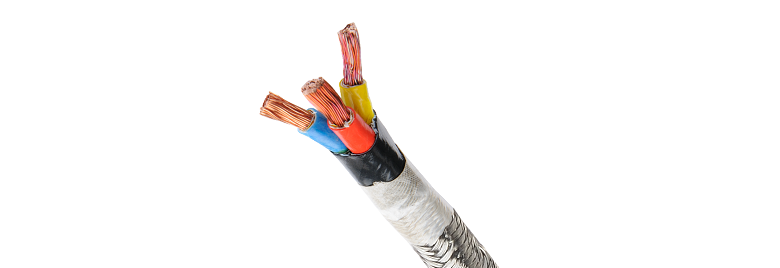

We provide a range of single & multi-core heat resistance cable for temperature range up to 800°C. Our Heat Resistance power Cables are suitable to resist in chemical, fire and flame atmosphere.
Construction: | 2, 3, 4, 5, 7, 12 or multiple cores |
Voltage Grade: | Up to 1.1 KV Grade |
Conductor: | ABC, TPC, NPC, SPC, Ni |
Conductor Size: | 1.5, 2.5, 4.0, 6.0, 10.0, 16.0, 25.0, 35.0 Sq mm or as per customer specifications |
Conductor Stranding: | Multistrand as per IS 8130:84 |
Core Insulation: | PTFE, FEP, PFA, Silicon, Fiber Glass, Ceramic Fiber etc. |
Isolator: | Polymide, Sintered PTFE Foil, Glass Mica Tape |
Screening: | Aluminum Foil type/Mesh Braided type |
Fire Barrier Tape: | Glass Mica Tape |
Inner/Outer Sheath: | Teflon, Fiber Glass, Ceramic Fiber etc. |
Armoring: | SS Braiding |
Standard: | As per IS 8130:84, JSS 51038 |
