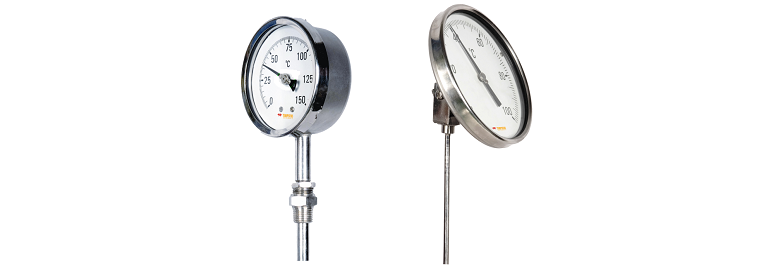

BMT - (BIMETALLIC THERMOMETER) The temperature is measured with a bi-metal system inside the thermometer stem. The bimetal system consists of two metal strips bonded together that have different thermal expansion coefficients. Therefore, one strip will expand faster than the other causing the bimetal strip to curl in proportion to its temperature. The bimetal system is helically wound and heat treated for long-term stability. Temperature variations cause the bimetal strip to unwind or wind tighter, which in turn rotates the pointer.
| Sensing Elements: | Bi-metal, Liquid Filled, Gas Filled |
| Filled Over-Range Protection: | 30% above FSD |
| Dial Size : | 63, 80, 100, 150, 250 mm |
| Stem Dia : | 6, 8, 10, 12 mm |
| Range: | Min. -40°C, Max. 650°C |
| Accuracy: | Class 1 as per EN13190 |
| Standard: | EN13190/IS13211 |
| Enclosure Protection : | IP-55, IP-65 (Filled) |
| Connection: | 1/8”, 1/4”, 3/8”, ½” BSP/NPT (M/F) |
| Mounting: | Center Back, Bottom Direct, Every Angle Mounting |
