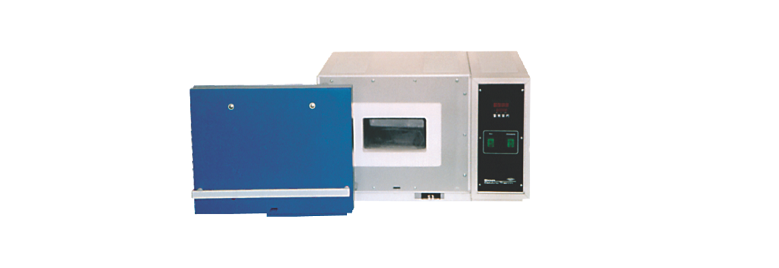

LM STANDARD FURNACE


Download     Contact Us

Standard Features:


  •  900°C or 1200°C maximum operating temperature.
  •  1.5, 5, 7.9, 18.5 liter chamber volumes.
  •  Eurotherm makes PID controller with a single ramp to set point.
  •  The sideways sliding door keeps heated surface away from the users.
  •  Energy efficient low thermal mass insulation
  •  Easy access to element & controls simplicities maintenance & servicing.
  •  Kanthal A1 heating element for optimum uniformity.


Technical Data:

Model
Max Temp(C)
Dimension Internal
H*W*D(mm)
Volume(lt)
Max Power(kW)
Heating Element
LM 112
1200
100*100*150
1.5
2
KANTHAL A1
LM 312
1200
90*175*300
5
2.8
KANTHAL A1
LM 412
1200
150*175*320
7.5
3.2
KANTHAL A1

LM 512
1200
230*200*400
18.5
8
KANTHAL A1
