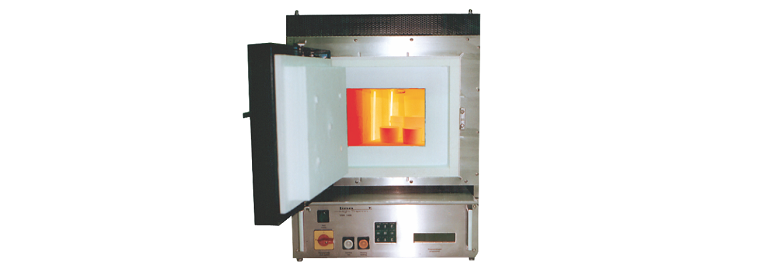

VMK TMAX 1800°C
Contact Us
Standard Features:
1400°C, 1600°C and 1800°C max. operating temperature.
From 4 to 6.9 liters capacities.
High-quality silicon carbide heating elements for use in VMK-1400°C and high-quality molybdenum disilicide heating element, VMK-1600°C & VMK-1800°C
The sideways sliding door keeps heated surface away from the user.
Eurotherm makes the controller.
Over temperature protection with alarm.
RS-232 communication for computer interface.
Advance refractory interior, used in combination with energy efficient low thermal mass insulation.
Technical Data:
Model
Max Temp(C)
Dimension
Internal
H*W*D(mm)
Volume(lt)
Max Power(kw)
Heating element
VMK 1400
1400
150*170*270
6.8
4
Sic
VMK 1600
1600
150*170*270
6.8
4
MOSi2
VMK 1700
1700
110*150*240
4
4
MOSi2
VMK 1800
1800
110*150*240
4
4
MOSi2
